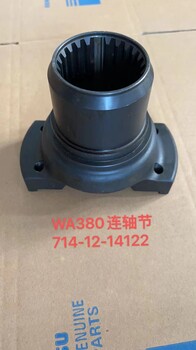

河北張家口小松WA380-6聯軸節714-12-14122
714-12-Z0020P1 Transmission Assembly ...........變速箱總成 1 AA0001-
1 714-12-34523 ? Shaft, Output .....................輸出軸 1 AA0001-
2 714-12-33851 ? Spacer ..........................調整墊片 1 AA0001-
3 714-12-34624 ? Gear, 62 Teeth ......................齒輪 1 AA0001-
4 714-12-39380 ? Bearing .............................軸承 1 AA0001-
5 714-12-39360 ? Bearing .............................軸承 1 AA0001-
6 714-12-37122 ? Retainer ..........................固定座 1 AA0001-
7 01010-81235 ? Bolt ................................螺栓 6 AA0001-
8 01643-31232 ? Washer ..............................墊圈 6 AA0001-
9 714-12-00030 ? Shim Assembly, (Kit : K01) ....調整墊總成 1 AA0001-
C1 ? ? Shim, T=0.05mm ............0.05mm調整墊 3 AA0001-
C1 ? ? Shim, T=0.5mm ..............0.5mm調整墊 2 AA0001-
C1 ? ? Shim, T=0.2mm ..............0.2mm調整墊 2 AA0001-
10 714-12-33841 ? Spacer ..........................調整墊片 1 AA0001-
11 714-12-38611 ? Hub, Spline .........................輪轂 1 AA0001-
12 714-12-37160 ? Spring, Out .....................外側彈簧 12 AA0001-
13 714-12-37150 ? Spring ..............................彈簧 12 AA0001-
14 714-12-37141 ? Cover .................................蓋 1 AA0001-
15 714-12-19121 ? Seal, Oil, (Kit : K01) ..............油封 1 AA0001-
16 714-12-19121 ? Seal, Oil, (Kit : K01) ..............油封 1 AA0001-
17 714-12-19170 ? Seal, Dust, (Kit : K01) ...........防塵圈 1 AA0001-
18 714-12-19170 ? Seal, Dust, (Kit : K01) ...........防塵圈 1 AA0001-
19 714-12-37210 ? Gasket, (Kit : K01) ...............密封墊 1 AA0001-
20 714-12-37111 ? Housing .............................殼體 1 AA0001-
21 01010-81240 ? Bolt ................................螺栓 7 AA0001-
22 714-12-37191 ? Screw ...............................螺釘 3 AA0001-
23 07000-72012 ? O-ring, (Kit : K01) ................O形圈 3 AA0001-
24 419-15-16670 ? Plate, Lock .........................鎖片 3 AA0001-
25 01010-81035 ? Bolt ................................螺栓 3 AA0001-
26 01643-31032 ? Washer ..............................墊圈 3 AA0001-
27 714-12-37132 ? Piston ..............................活塞 1 AA0001-
28 07000-A6215 ? O-ring, (Kit : K01) ................O形圈 1 AA0001-
29 07000-A6245 ? O-ring, (Kit : K01) ................O形圈 1 AA0001-
30 07001-06215 ? Ring, Back-up, (Kit : K01) ........支承環 1 AA0001-
31 07001-06250 ? Ring, Back-up, (Kit : K01) ........支承環 1 AA0001-
32 714-07-12670 ? Disc ..........................從動磨擦片 8 AA0001-
33 714-12-19730 ? Plate, Separate .......................板 9 AA0001-
34 714-07-12691 ? Spring, Wave ........................彈簧 8 AA0001-
35 714-12-17250 ? Plate, End ..........................擋板 1 AA0001-
36 714-07-12720 ? Ring, Snap ..........................卡簧 2 AA0001-
37 714-12-34230 ? Coupling ..........................聯軸節 1 AA0001-
C1 ? ? Coupling ........................聯軸節 1 AA0001-
C1 ? ? Deflector .......................防塵圈 1 AA0001-
38 423-22-21240 ? Washer ..............................墊圈 1 AA0001-
39 07000-75055 ? O-ring, (Kit : K01) ................O形圈 1 AA0001-
40 01011-62025 ? Bolt ................................螺栓 1 AA0001-
41 01643-32060 ? Washer ..............................墊圈 1 AA0
